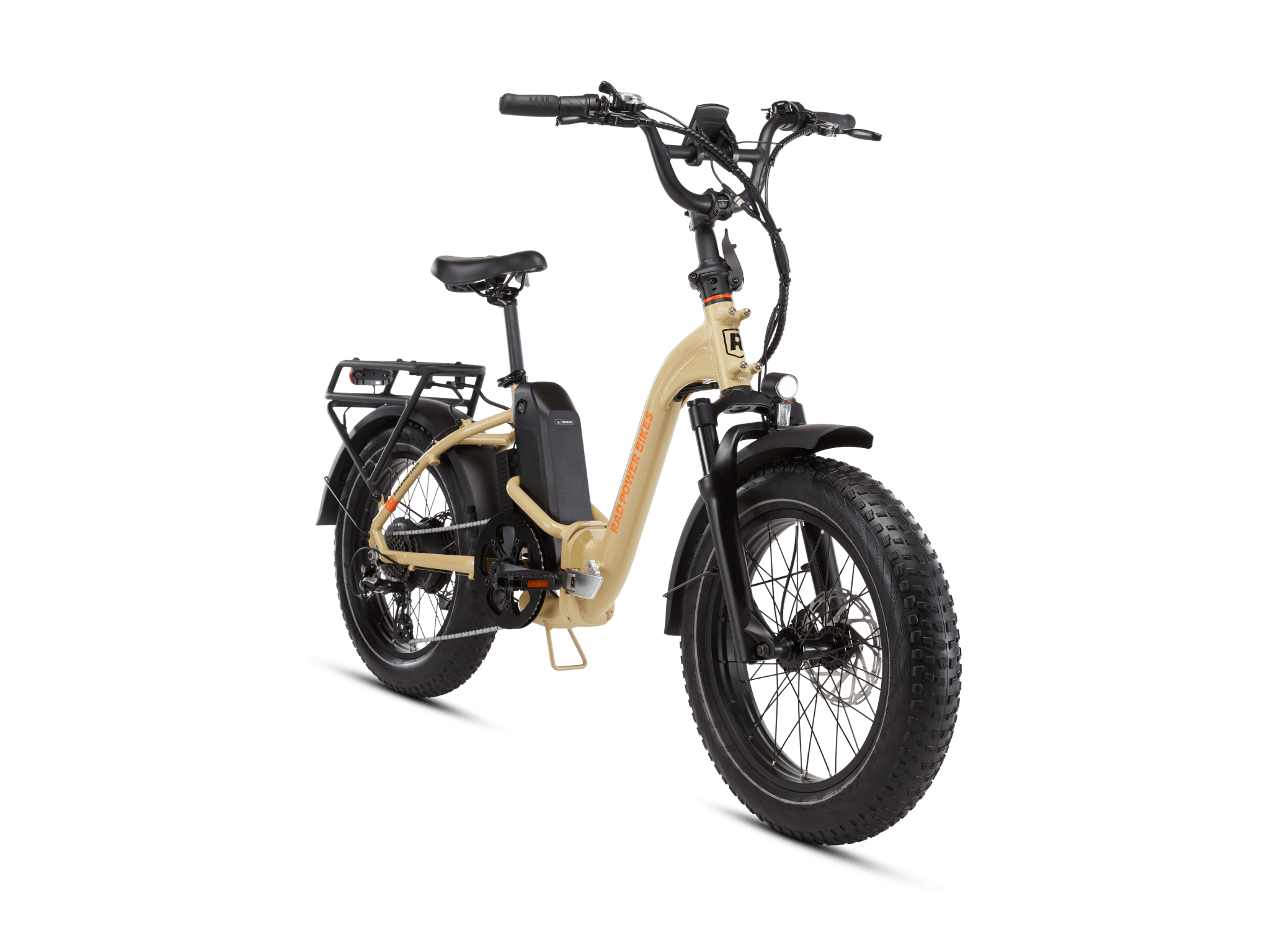

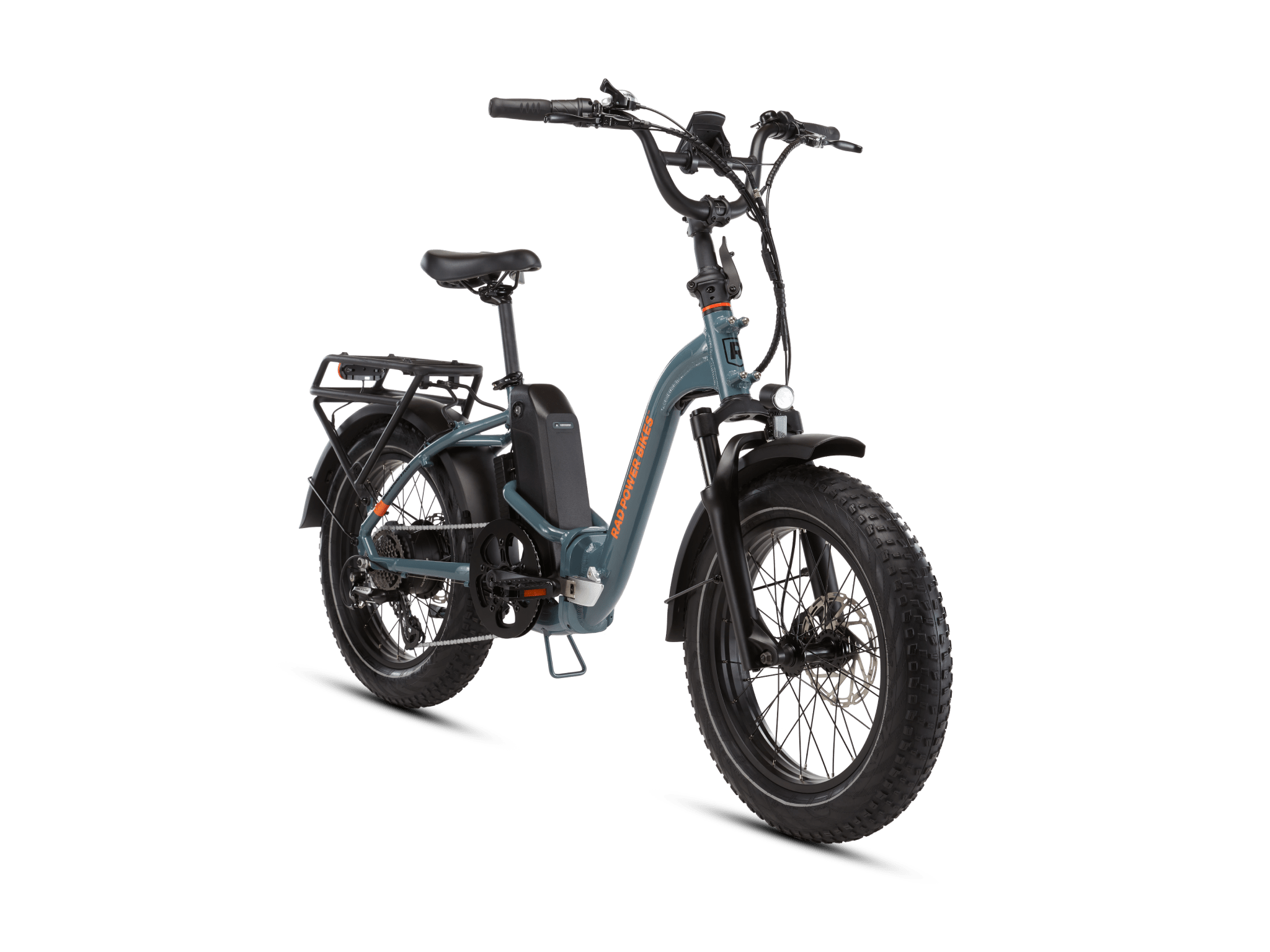

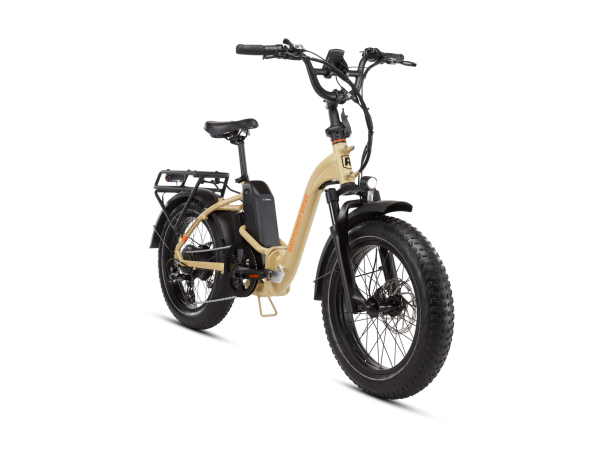

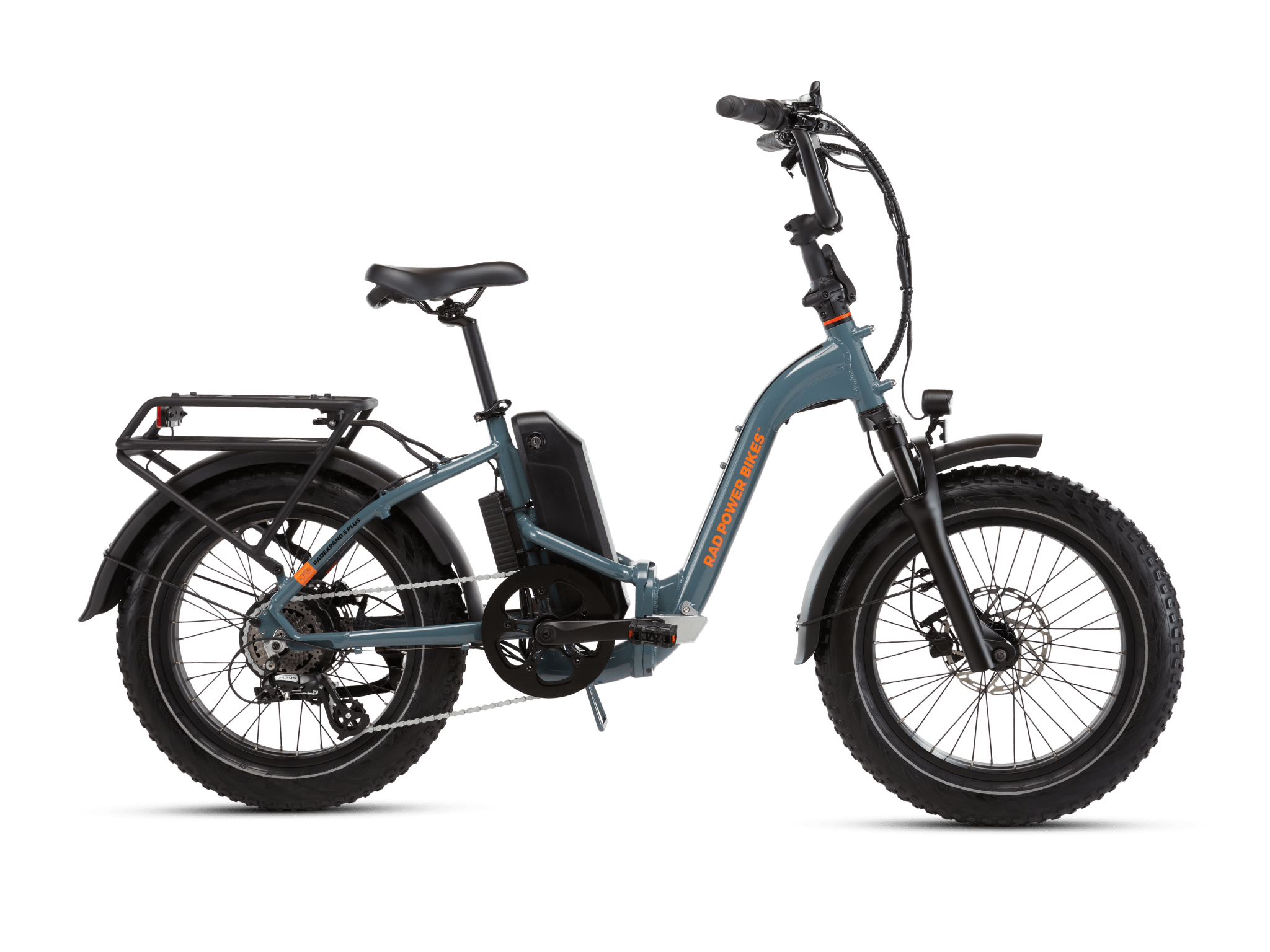

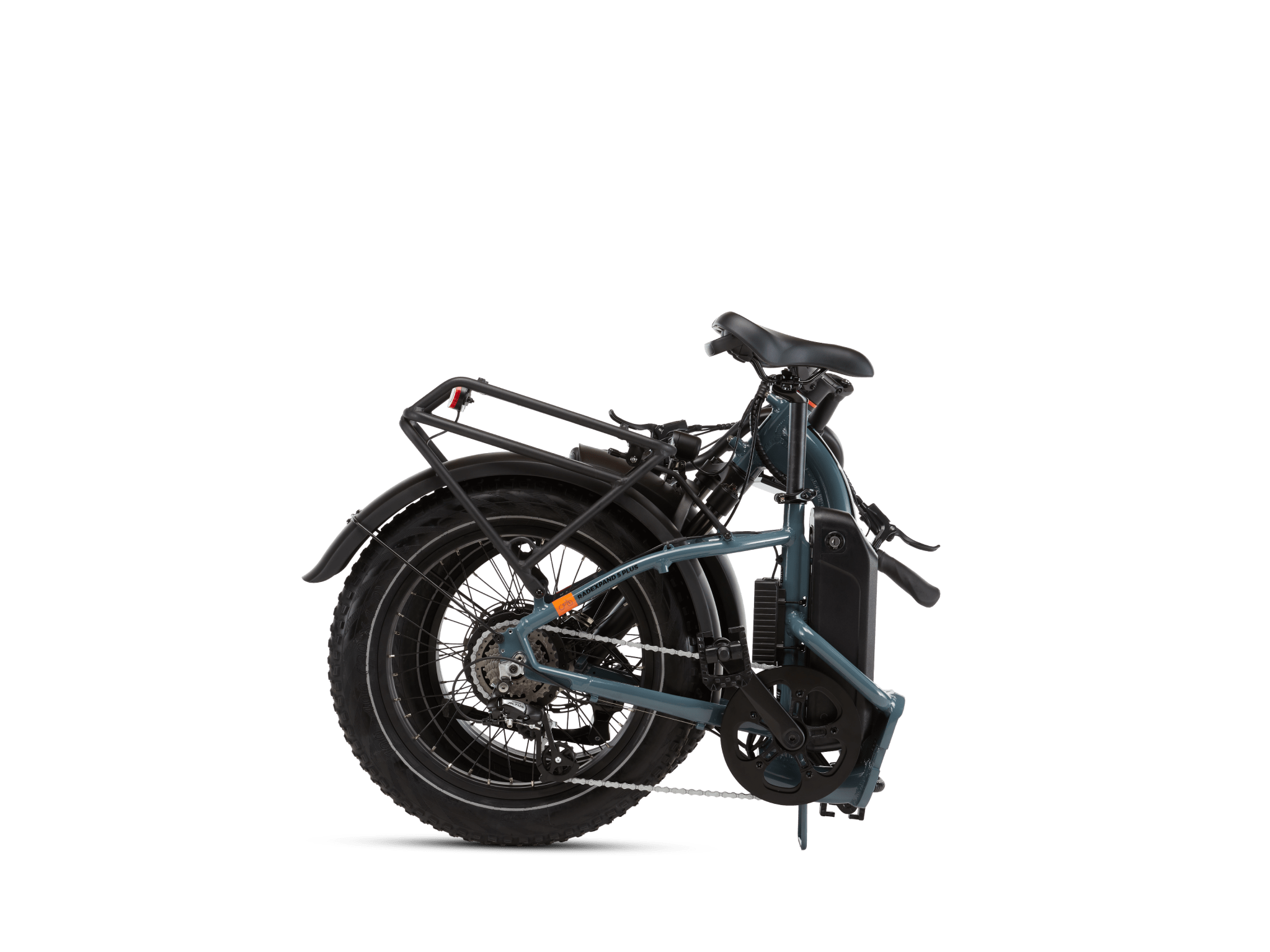

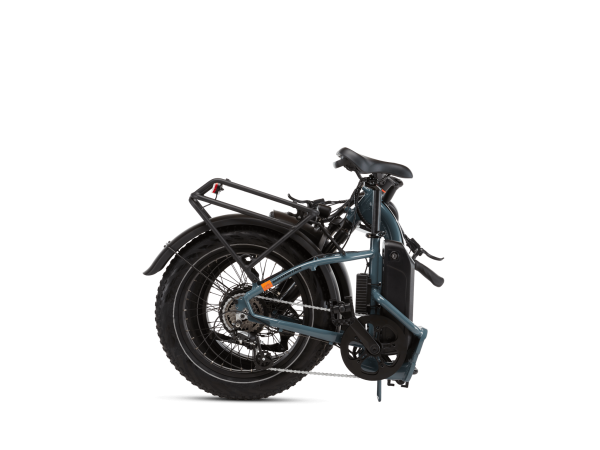

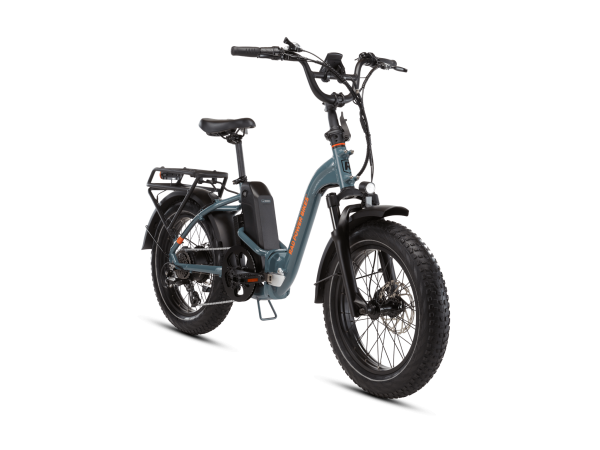

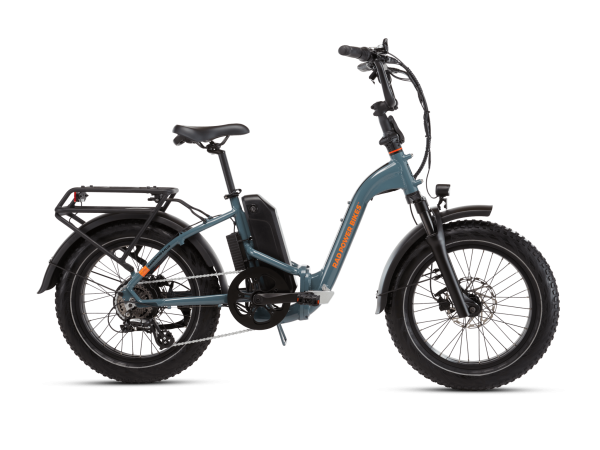

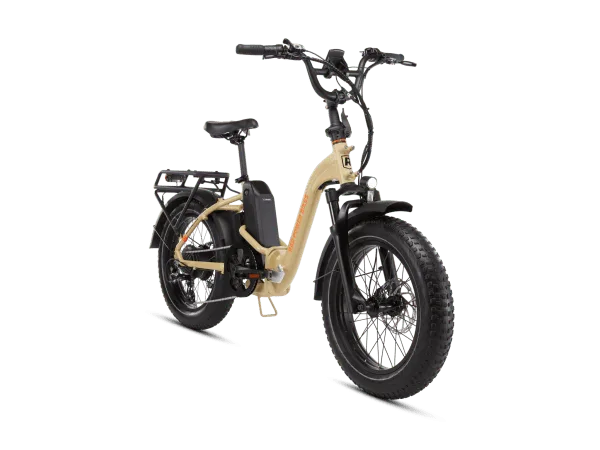

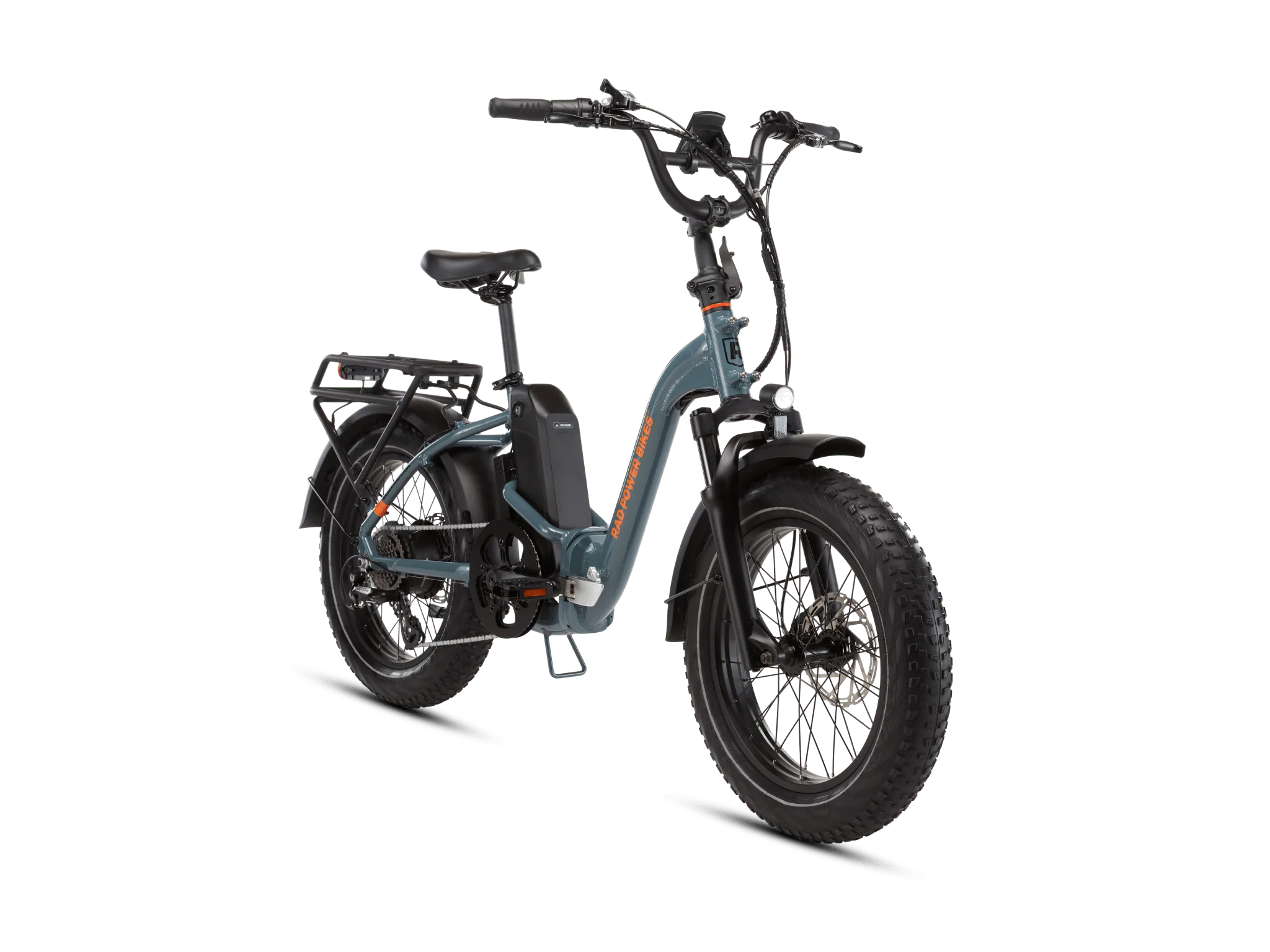

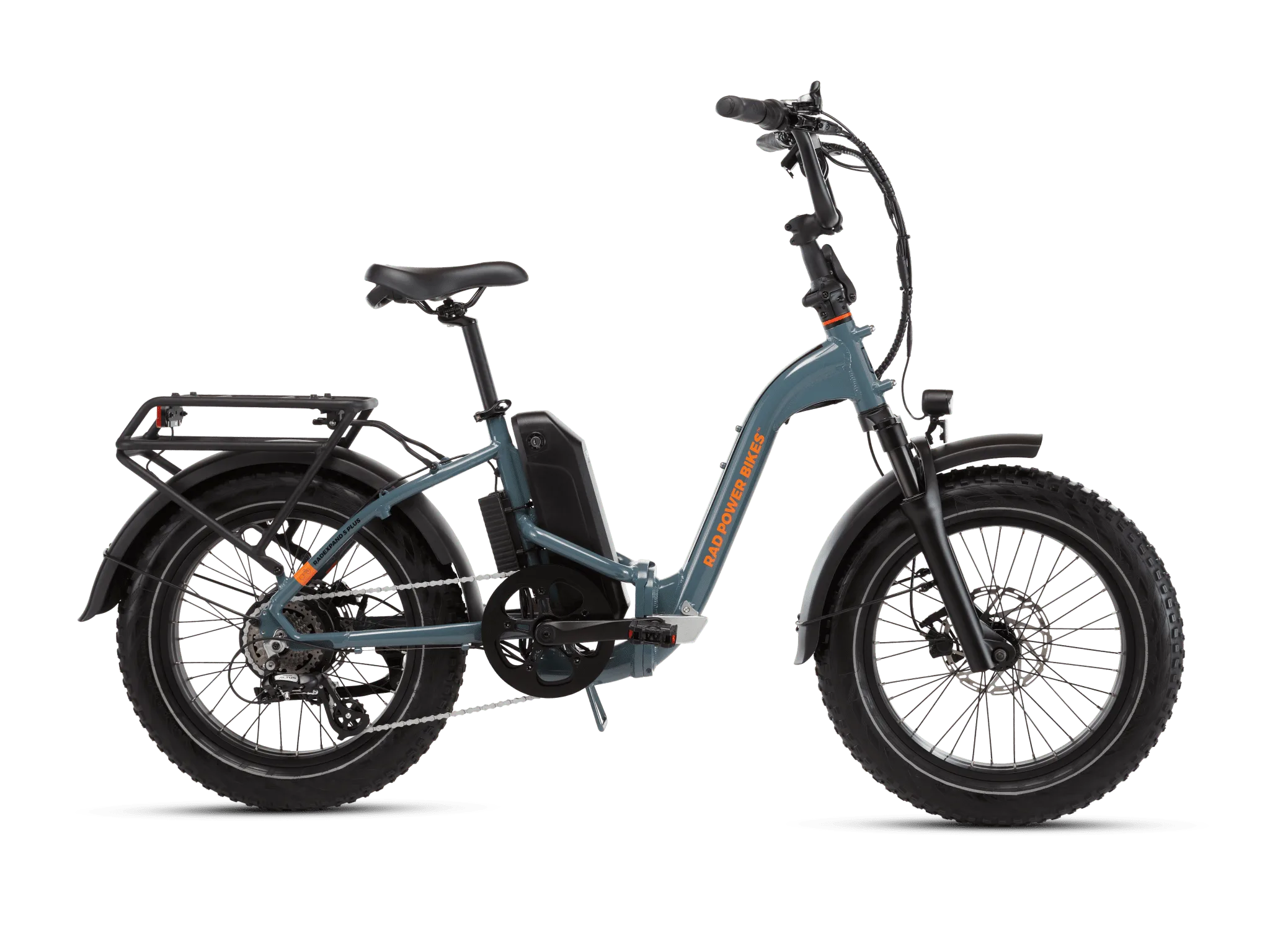

RadExpand™ 5 Plus Electric Folding Bike
The RadExpand™ 5 Plus Electric Folding Bike features front suspension, hydraulic disc brakes, turn signals, and retractable pedals for easier storage. For riders 4’10”-5’10”
The folding bike. Gone futuristic.
We’ve taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.
Electronics
-
Battery
15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271
-
Charger
48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
-
Class
Class switchable between 1 and 2. Ships in Class 2 status.
-
Display
Rad custom color display. See Display section below for details.
-
Hub Motor
Rear hub 350W, 64 Nm torque
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. -
Lights
Auto-on feature
Front: ~200 lumens LED headlight with built-in reflector
Rear: Integrated taillight with brake light and turn signals -
Pedal Assist
Torque sensor, 5 PAS Levels, plus a zero assist option
-
Range
Estimated 20-60 miles per charge
-
Throttle
Half twist throttle
-
UL Status
UL Certified to UL 2849 and UL 2271
-
USB Ports
One USB-C port, located on display
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Components
-
Bell
Yes
-
Brake System
Hydraulic Disc, Gemma GA-1000B
-
Brake Pads
Gemma Semi-Metallic G2
-
Brake Rotors
180mm x 2.3mm
-
Crank Set
48T with dual sided chain ring cover, 170mm crank arms
-
Derailleur
7 speed Shimano
-
Fenders
Full coverage front and rear fenders
-
Fork
Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle
-
Frame
Aluminum
-
Freewheel/Cassette
7-speed freewheel, 14-32T
-
Gearing
1×7 speed
-
Grips
Ergonomic rubber comfort grips
-
Handlebar
Aluminum, 680 mm wide
-
Kickstand
Side mounted, adjustable angle kickstand
-
Pedals
Composite platform, CrMo axle with reflectors, standard 9/16″ x 20 TPI threading, folding
-
Rear Rack
Integrated, 59 lb (27 kg) carrying capacity
-
Saddle
Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides
-
Seatpost
390 mm x 27.2 mm
-
Seatpost Clamp
31.8 mm
-
Shifter
Shimano 7-speed thumb shifter
-
Stem
Folding stem raiser with 45mm A-Head stem
-
Tires
CST BFT 20″ x 4.0″, e-bike rated with puncture-resistant liner and reflective strip
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
